Shared machine
Flat Bar on Edge at 800mm Ø mm 60 x 10
Flat Bar as Flat at 750mm Ø mm 120 x 15
Square Bar at 800mm Ø mm 35
Rectangular Hollow Section at 850mm Ø *mm 50 x 40 x 3
Square Hollow Section at 830mm Ø mm 60 x 60 x 3 (With optional special rolls)
Angle Iron Toe Out at 850mm Ø mm 50 x 50 x 5
Angle Iron Toe In at 1200mm Ø mm 50 x 50 x 5
Tee Section Toe Out at 650mm Ø mm 50 x 50 x 5
Tee Section Toe In at 900mm Ø mm 50 x 50 x 5
Tee Section Toe Up/Down at 900mm Ø mm 50 x 50 x 5
Channel Legs Out at 1200mm Ø * mm 60 x 30 x 6
Channel Legs In at 1200mm Ø * mm 60 x 30 x 6
Power kW 1.5

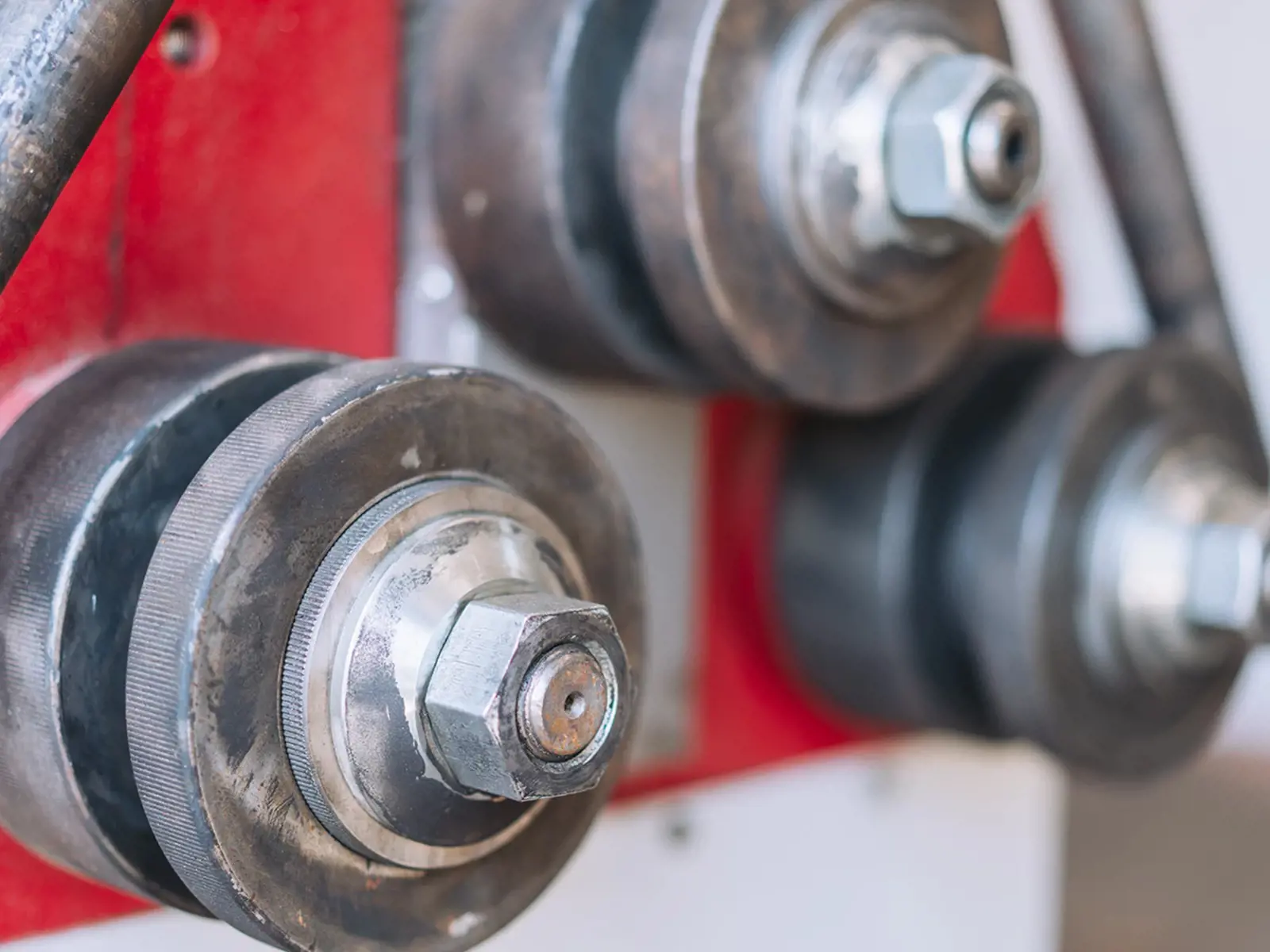

Rolls Diameter mm 155
Shaft Diameter mm 50
Bending Speed m/min4.3
